Standing Seam Snap Lock Panels - Clip Series

SLEEK MODERN LOOKS & POWERFUL PERFORMANCE

Combining bold standing seam lines and ease of installation, a Snap Lock Clip system delivers enhanced thermal movement and wind resistance. Concealed metal clips snap together with panels to form an interlocking seam that holds them in place – no mechanical seaming required!

Hidden fasteners and clips
Allows for thermal movement
Excellent wind uplift resistance
Lock-action design requires no mechanical seaming
Unlimited panel lengths with on-site panel manufacturing
Available in steel and aluminum in 50+ colors (copper & zinc optional)
Striated*, ribbon bead or pencil bead
Finish warranties^† up to 50 years / Metal warranties^† up to 25-1/2 years

IM675SL
1-3/4" Snap Lock Clip Panel

Coverage Width: 14″, 16″ or 18″
‡Slope: 1/4:12 minimum
Rib Height: 1-3/4″
Metal/Gauge: 26- and 24-Gauge Galvalume; 22-Gauge Special Order / .032 and .040 Aluminum (Additional gauges and copper and zinc available with site specific certification)
Support: Plywood or Wood Plank

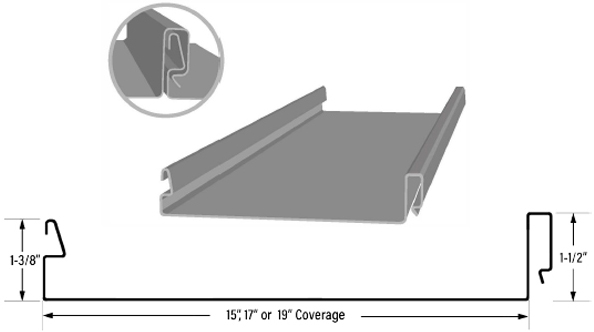

IM550SL
1-1/2" Snap Lock Clip Panel

Coverage Width: 15″, 17″ or 19″
‡Slope: 1/4:12 minimum
Rib Height: 1-1/2″
Metal/Gauge: 26- and 24-Gauge Galvalume / .032 and .040 Aluminum
(Additional gauges and copper and zinc available with site-specific certification)
Support: Plywood or Wood Plank

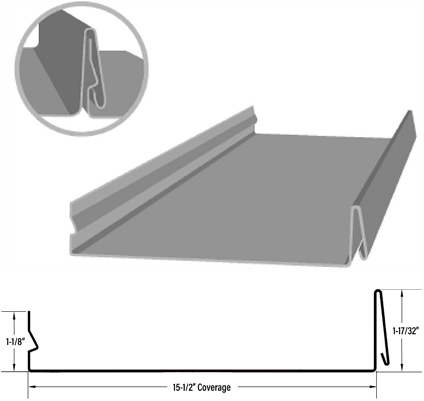

IM450SL
1-1/2" Snap Lock Clip Panel

Coverage Width: 15.5″
‡Slope: 1/4:12 minimum
Rib Height: 1-1/2″
Metal/Gauge: 26- and 24-Gauge Galvalume / 0.32 and 0.40 Aluminum
(Additional gauges and copper and zinc available with site-specific certification)
Support: Plywood or Wood Plank

*All snap lock panels come standard with striations unless otherwise specified or requested. †Talk with an Integrity Metals representative for full warranty details and restrictions. ‡ Minimum slope with sealant per FBC 1507.4.2; consult with local municipality for applicable controlling building codes that may affect your project. Galvalume® is a registered trademark of BIEC International Inc.
