From eave to ridge and gable to gable, we have all the metal roofing products to get the job done right.
Exposed Fastener Panels
Exposed Fastener Roofing Systems are those which leave the fasteners exposed after the installation. These systems are known for their strength and are known in the industry as a more cost effective metal roofing system. These systems are available in multiple gauges and paint finishes.
IM36 AG
Min 26 Gauge x 24”
Coverage 5V Crimp Panel

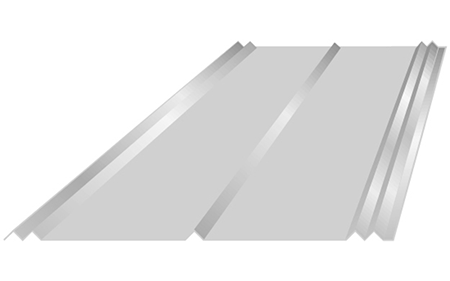

IM 5VC
Min 26 Gauge x 24”
Coverage 5V Crimp Panel
Standing Seam Snap Lock
Snap Lock “Style” Standing seam roofs are available in multiple profiles, each of which touting their own benefits. Our 1” Nail-strip style panel has a built in “roll formed” locking mechanism that secures each panel to the next and an integrated fin with pre- punched holes for applying your fasteners.
Our other variations of Snap Lock style standing seam is a Clip System Snap Lock. These systems do not have an integrated fastening flange and require a clip to lay over the Male rib of the panel to secure it to the roof deck the next panel snaps and locks over top of the clip and the male rib of the panel which will conceal the fasteners.

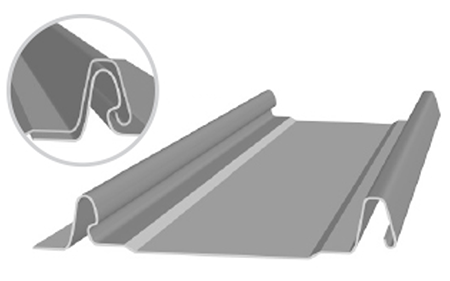

IM 100 Integri Lock
1” Tall Rib Min 26 Gauge Max 16”
coverage nailstrip panel
IM 100 Integri Lock
1” Tall Rib Min .029 Alum Max 16”
coverage nailstrip panel

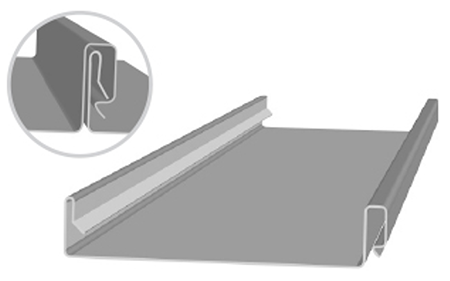

IM675
1.75” Tall Snap Lock Clip System
Min .029 Alum Max 18” Coverage
IM675
1.75” Tall Snap Lock Clip System
Min 26 Gauge Max 18” Coverage
IM450
1.5” Tall Snap Lock Clip System
Min 26 Gauge Max 16” Coverage
Mechanical Seam
Mechanical Seam Roofs are also a Concealed Fastener standing seam installed with a clip. However, these systems require each panel to be seamed to one another using either manual or automated seamers and the legs of this panel can be seamed to 90 Degrees (also known as single lock) or 180 Degrees (also known as double lock) the Degree of the seam is dependent on the amount of uplift requirement determined by your local building municipality. These panels are known for their incredible strength and usually more common on commercial buildings or in higher wind zones.

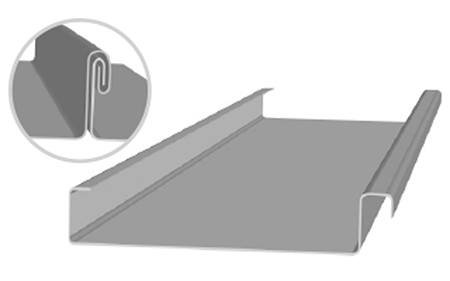

IM150 MS
1.5” Tall Mechanical Seam
Min 24 Gauge Max 20” Coverage
IM150 MS
1.5” Tall Mechanical Seam
Min .029 Alum Max 20” Coverage
IM150 MS
1.5” Tall Mechanical Seam
Min 16 oz Copper Max 16” Coverage

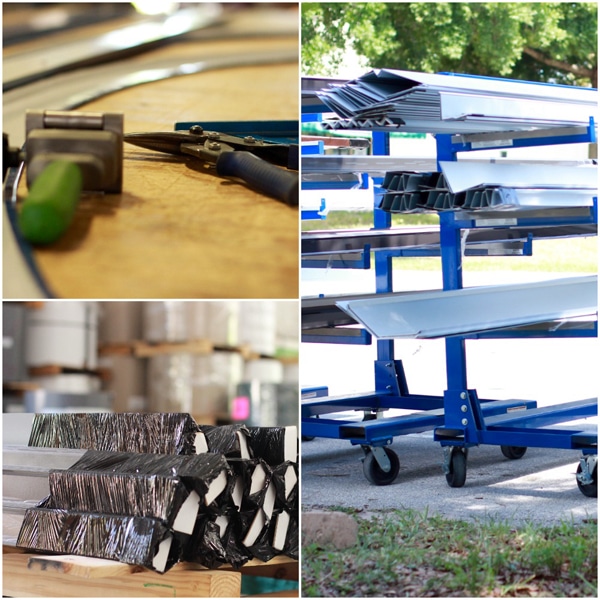

Edge Metals and Roof Trims
Ventilation and Terminations
Fasteners
Accessories

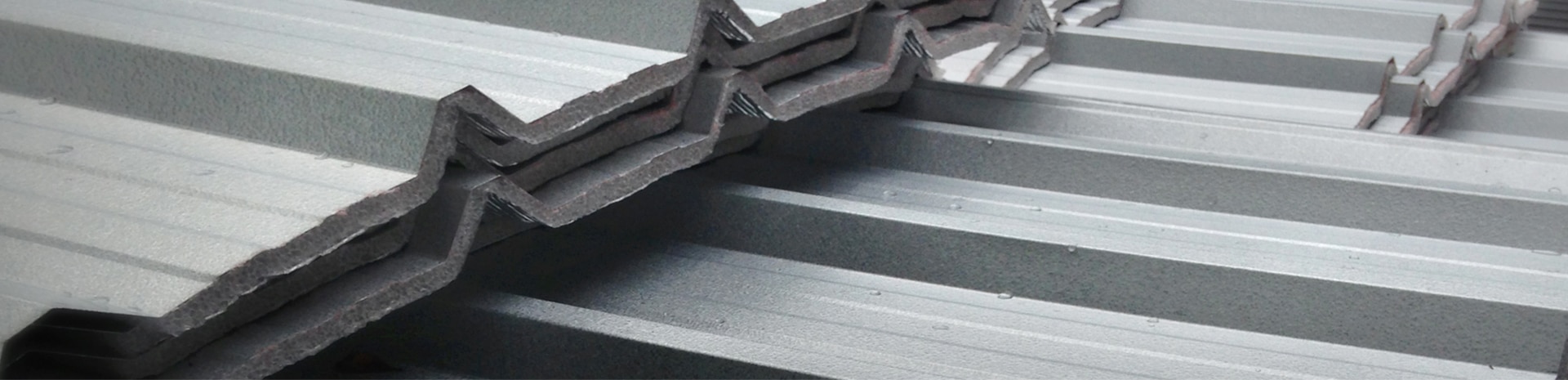

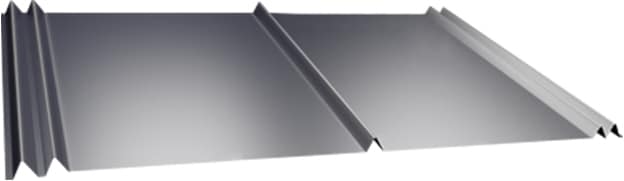

Sometimes called through-fastener, Exposed Fastener Metal Panels are installed using screws that go through the top of panels and fasten directly to the roof deck. Fasteners are visible resulting in the distinctive look of a classic metal roof. Strong, versatile and easy to install, an exposed fastener roofing system is a budget-friendly option.
Most of our exposed fastener panels are designed for both vertical and horizontal installation and can be used for wall applications, mansard roofs, soffits and other accents.

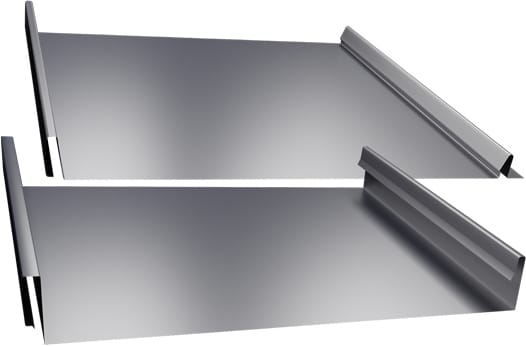

A Snap Lock Standing Seam Metal Roof uses a concealed fastening system offering a sleek aesthetic without mechanical seaming. Panels are fastened to the roof deck, and seams are “snapped” together into place making for quick and easy installation while hiding screws or clips underneath. Choose from our very popular Snap Lock Fastener Flange Series or Snap Lock Clip Series.
– Integrated nail strip with pre-punched holes
– No clips or mechanical seaming
– Interlocking seam with clip
– No mechanical seaming

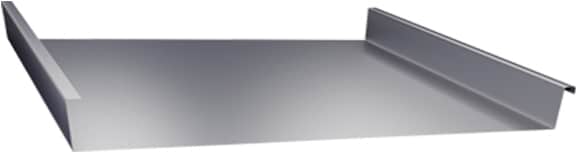

Mechanical Seam Standing Seam metal roofing systems are designed for rigorous conditions and maximum durability. Installed using a hidden clip system, panels are manually or mechanically seamed together offering greater thermal movement, exceptional wind uplift resistance and better watertight capabilities. Mechanical Seam panels are also used for Curved Radius Metal Panels – one of our specialties.
Seaming options include 90 degree (also known as single lock) or 180 degree (double lock) depending on the roof slope and other engineering considerations, as well as type of exposure to extreme weather conditions.
