ULTRA STRONG PERFORMANCE WITH A CLEAN AESTHETIC

Using a hidden clip system, Mechanical Seam panels allow for greater thermal movement and offer exceptional wind uplift resistance. Designed for rigorous conditions, these are the metal panel systems for maximum durability.

90°or 180° mechanical seam
Excellent thermal movement and highest wind uplift pressures
No length limit w/ on-site production
Striated*, ribbon bead, or pencil bead
Available in steel and aluminum in 50+ colors (copper and zinc optional)
Finish warranties^† up to 50 years / Metal warranties^† up to 25-1/2 years

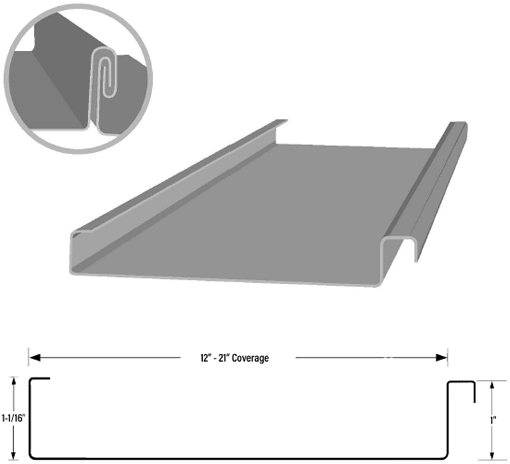

IM100MS
1" Mechanical Seam Panel

Coverage Width: 12″ – 21″
‡Slope: 1/4:12 minimum
Rib Height: 1″
Metal/Gauge: 24-Gauge Galvalume®/ .032 and .040 Aluminum / 16-Ounce Copper
Support: Plywood or Wood Plank

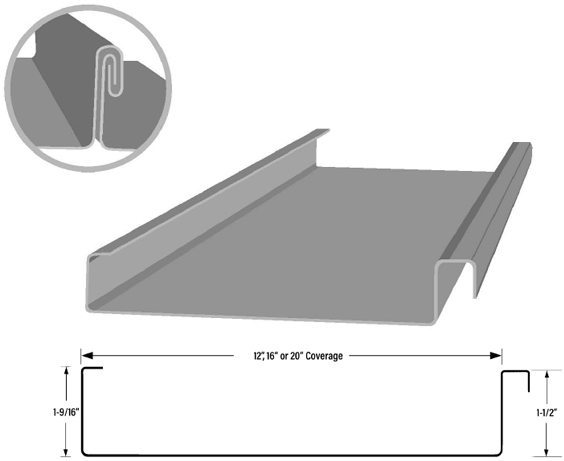

IM150MS
1-1/2" Mechanical Seam Panel

Coverage Width: 12″ – 20″
‡Slope: 1/4:12 minimum
Rib Height: 1-1/2″
Metal/Gauge: 24- and 26-Gauge Galvalume®/ .032 and .040 Aluminum / 16- and 20-Ounce Copper / 7MM and 8MM Zinc
Support: Plywood or Wood Plank

GOT CURVES? We can help with that! Create an overhang or a curved roof line that makes a statement! We specialize in Radius Metal Roofing Systems and associated flashings. From simple stage radius applications to tricky oblong multi-stage radius roofs, we have the answers.

Contact Our Roofing Experts Today

To learn more about mechanical seam metal roofs or request a free quote and aerial report, contact the roofing experts at Integrity Metals at (772) 584-2654.

*All mechanical seam panels come standard with striations unless otherwise specified or requested. †Talk with an Integrity Metals representative for full warranty details and restrictions. ‡Minimum slope with sealant per FBC 1507.4.2; consult with local municipality for applicable controlling building codes that may affect your project. Galvalume® is a registered trademark of BIEC International Inc.
